"Quality Technology Innovation"

(Manufacturer of "Narrow Fabric Machinery")

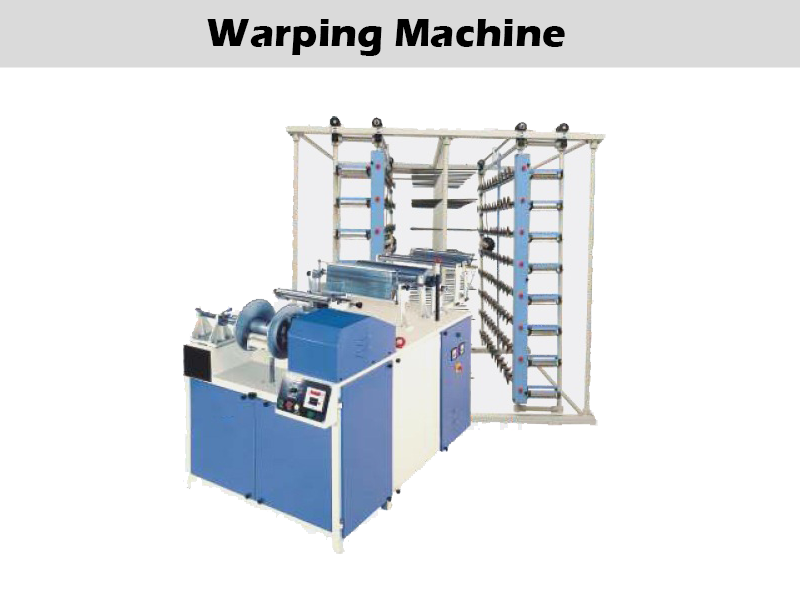

We are manufacturing and offering Advanced Warping Machine to our clients, which is extensively used in various industries. Our range is machines is stringently checked on the various quality parameters and meets industry standards. We also offer our range in different technical specifications that meet the various requirements of our clients.

  • Automatic Constant Linear Speed.
  • Variable Winding Speed.
  • Preset Digital Counter Meter And Electronic Sensor For Accurate Warp Length.
  • Electromagnetic Instant Brake For Machine Stop.
  • Auto Stop Motion In Case of Yarn Break.
  • A.C Drive For Low Power Consuption, Slow Start, Required Adjustable Speed.
  • Floating Pressure Roller.
  • Variable Warp Pitch
  • Antistatic Device (Optional)
  • Oiling Device (Optional)
Model WM-350 WM-500
Max.Speed 180 Mtr/Min. 150 Mtr/Min
Power Detail 1.5kW 3.75kW
Beam Size 350 mm Dia X 250 mm (W) 500 mm Dia X 470 mm (W)
Creel 96 / 128 / 160 / 192 /256 / 320 (Number of Ends)
